Description
The 4VT range delivers precise, controlled temperatures to a wide variety of applications and equipment, making it an ideal choice for many steam requirements. Hand crafted at our manufacturing facility in Britain and featuring a range of class-leading innovations such as energy-saving four-pass technology and a 30% larger steam chamber, the 4VT Steam Boiler is arguably the most energy efficient, high performance, reliable, and low maintenance steam boiler on the market.
This 60 HP unit has a maximum continuous steam rating of 940 kg/hr and is rated for 10 bar.g working pressure. It was manufactured in 2004 and hydrostatically tested on 14 December 2004.

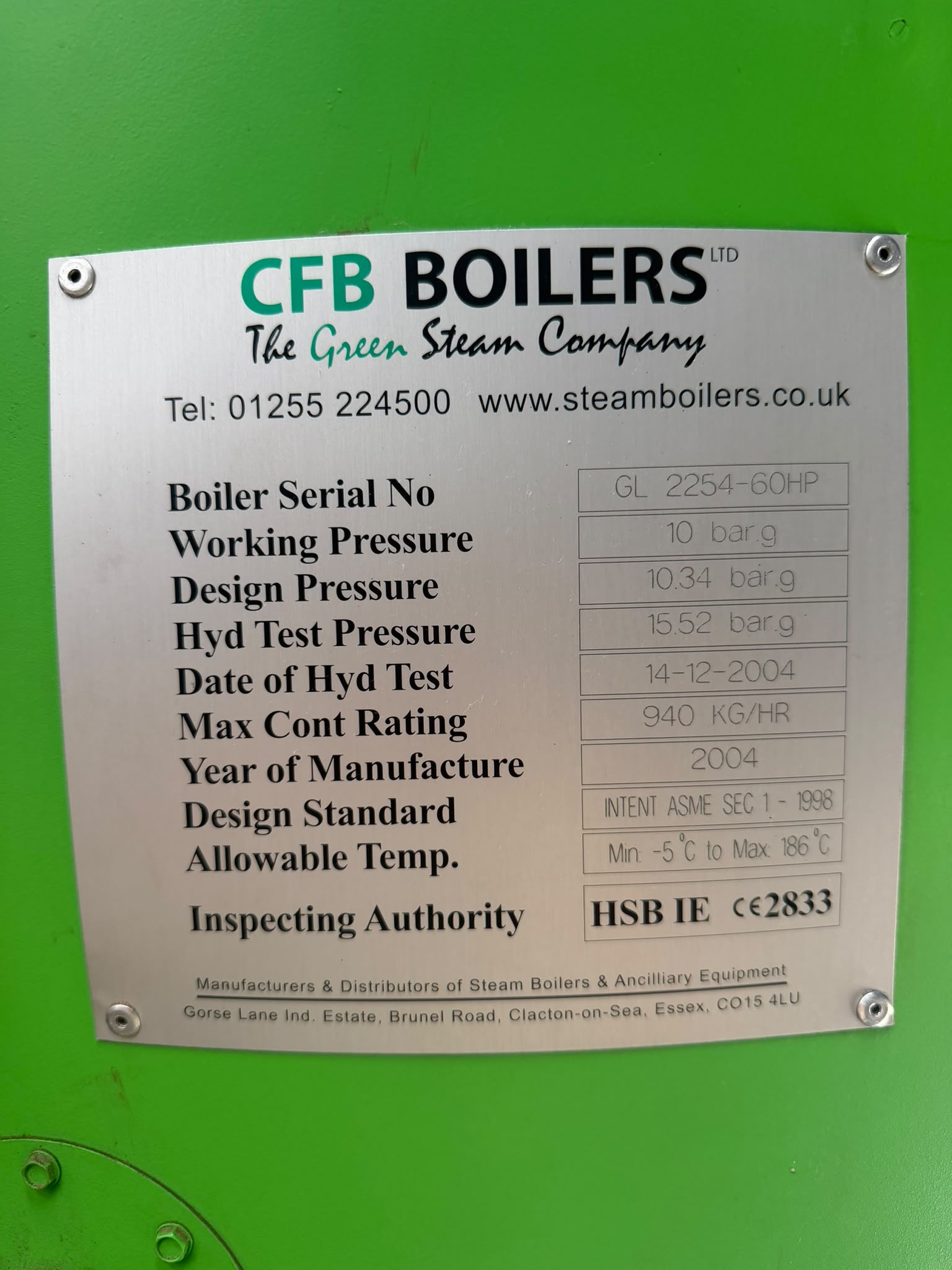

Key Specifications
• Serial No: GL 2254-60HP
• Year of Manufacture: 2004
• Steam Output: 940 kg/hr (max continuous)
• Working Pressure: 10 bar.g
• Design Pressure: 10.34 bar.g
• Hydro Test Pressure: 15.52 bar.g (14-12-2004)
• Design Standard: ASME Section I – 1998 (intent)
• Allowable Temperature: Min -5°C to Max 186°C
• Inspecting Authority: HSB IE (CE 2833)
• Manufacturer: CFB Boilers Ltd, Gorse Lane Industrial Estate, Brunel Road, Clacton-on-Sea, Essex, CO15 4LU
